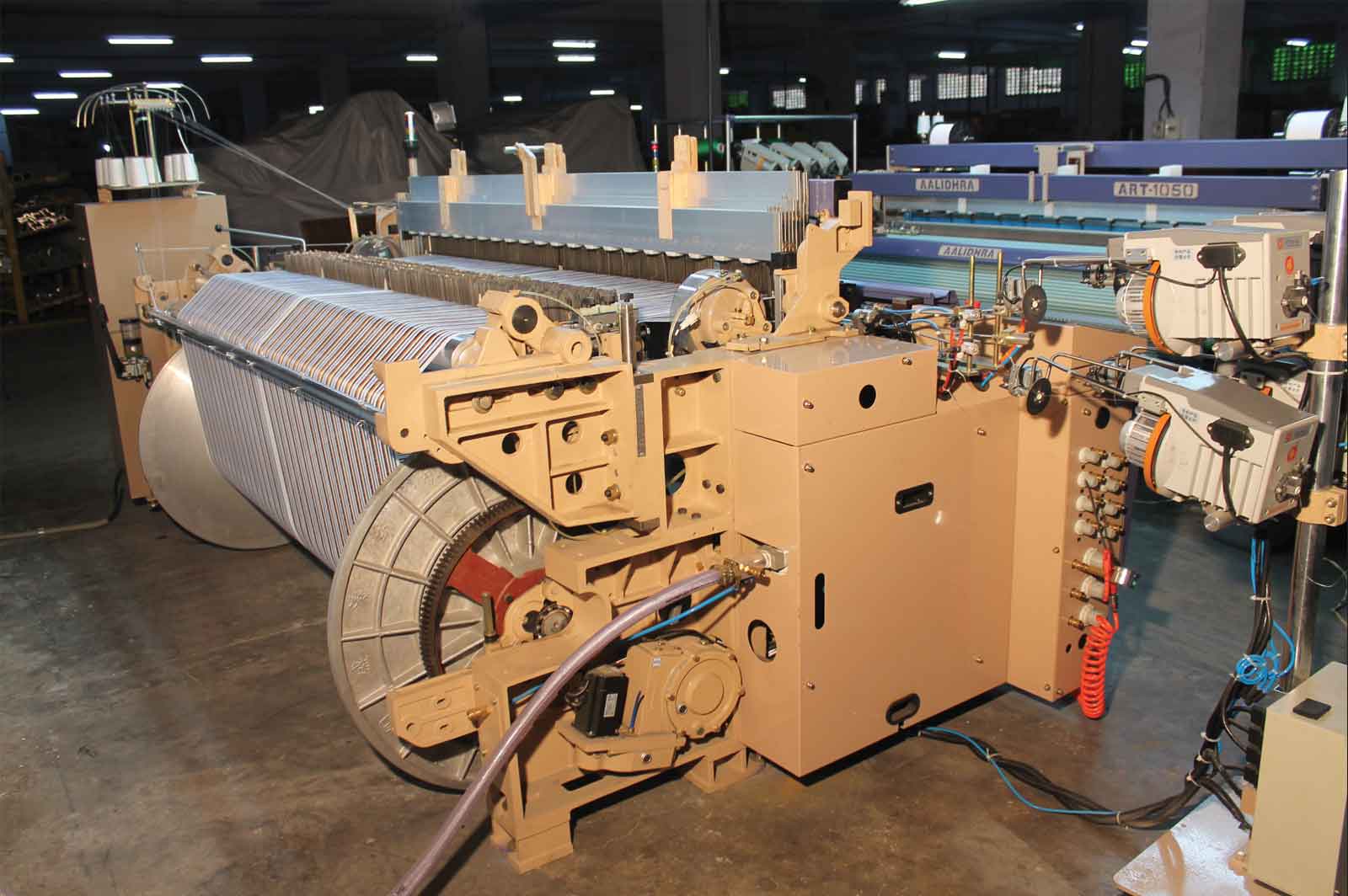

AAT 1550 Weaving Machine

Airjet Weaving Machine

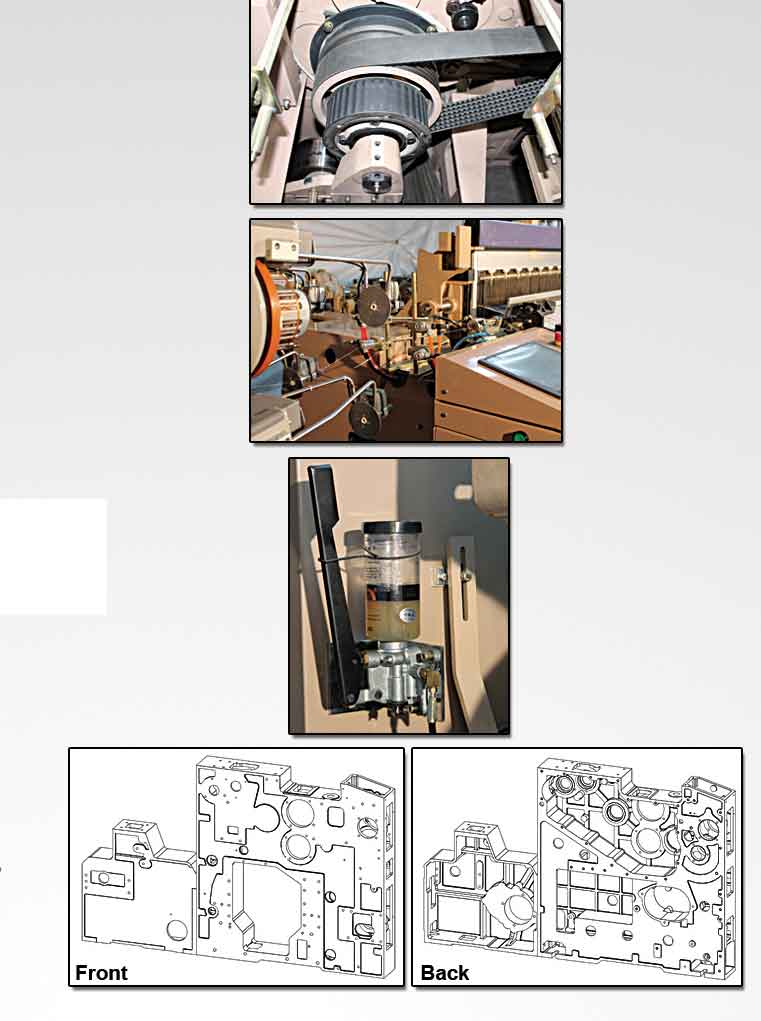

Dual Brake :
Dual Disk Brake gives precise loom stop function even at High RPM
Main jet device :
Double swing main jet device with tandem swing boost provides gentle main nozzle to nozzle air flow of weft yarn which future improves the machine performance.
Semi-Automatic refueling system :
Using the intelligent semi-automatic refueling system, ensuring high-quality oil in the case, reducing the labor intensity of preservation work.
Main frame :
Sturdy main frame increases rigidity, reduces rack deformation during operation thus provides High stability at high loom speed.
Sley arm :-
Well balance sley arm reduces the vibrations generated by beating action, without compromising beating force.
Let off rear structure :
New let off rear frame structure with external easing drive well maintains a stable wrap tension sensing axis to transmit accurate warp tension to control system.

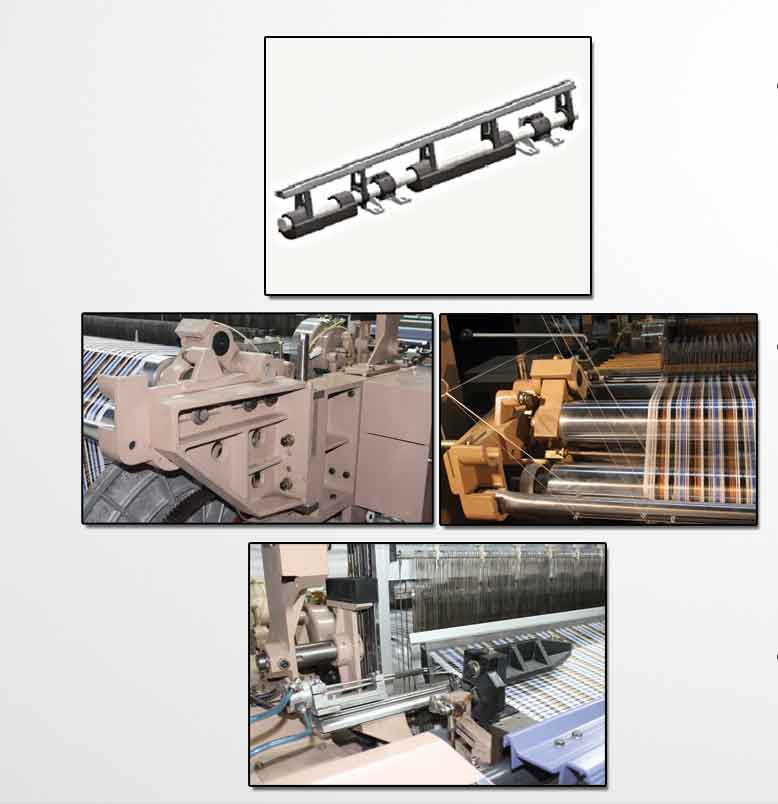

Temple structure :-
With new adjustable temple structure it’s very easy to set the temple devise for different width of fabrics.

Airjet Weaving Technology
